WIDE RANGE OF FLOWRATE
for industrial processes

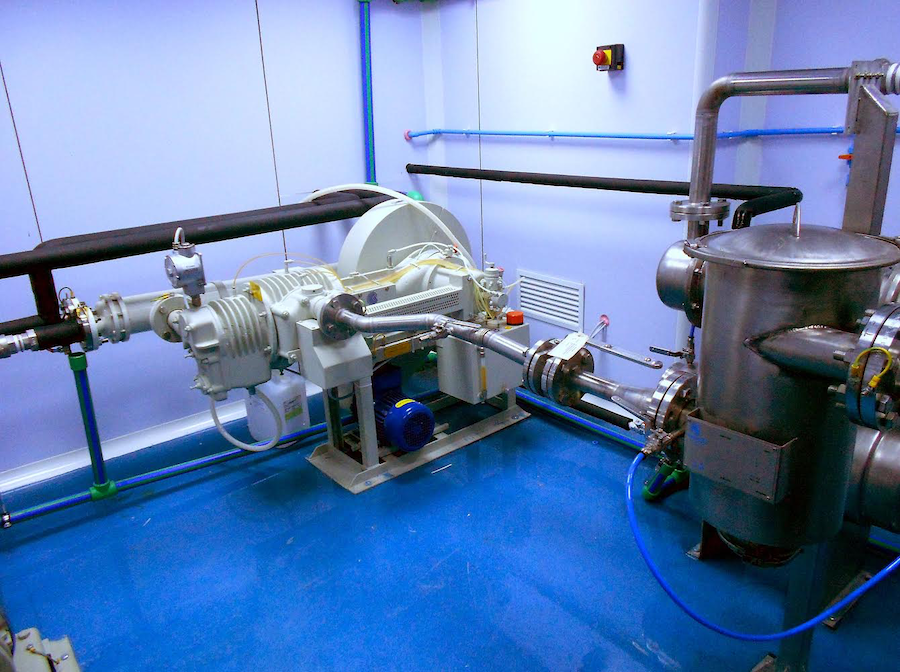

Ideal in all the main chemical, fine chemical and pharmaceutical processes, robust and reliable even in hard working conditions
Main fields of application
Vacuum Piston Pumps perfectly suitable for processes of:
● vacuum drying
● reaction
● distillation
● crystallisation
● filtration
● evaporation
● polymerisation processes

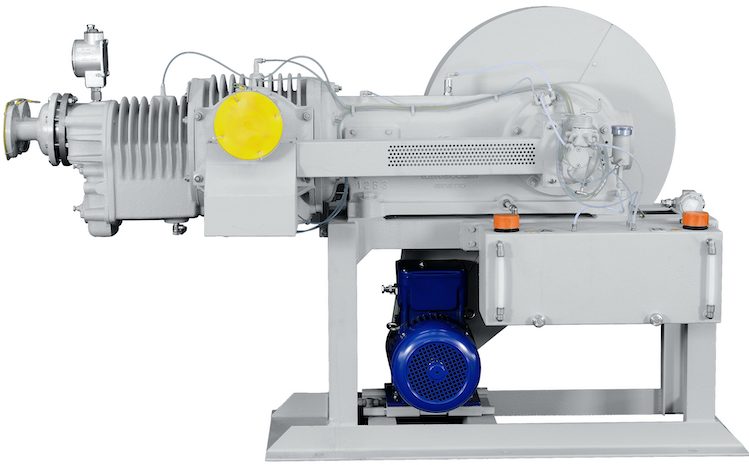

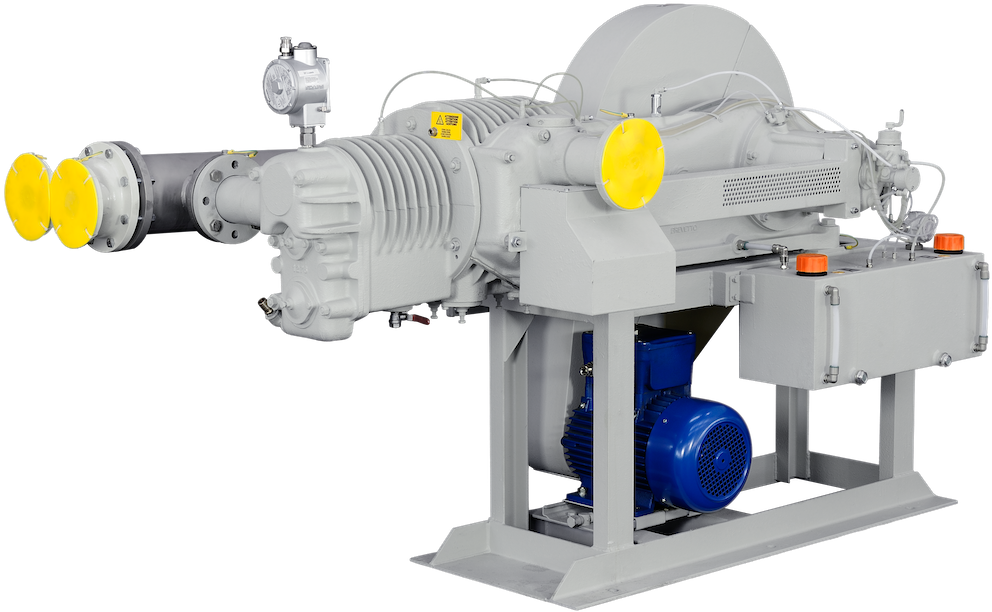

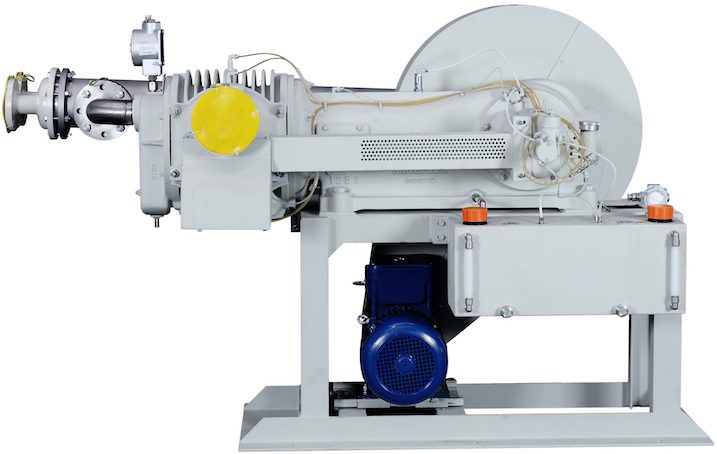

The vacuum piston pump can intake
all kinds of volatile substances
without compromises
in the working vacuum range
Common solvent vapours:
methyl alcohol, ethyl alcohol, chloroform, acetone, ethyl acetate, methyl chloride, benzol, toluene, isopropyl alcohol, ethyl ether, heptane.
Most aggressive solvents thanks to the protection of a thin layer of oil:
hydrochloric acid, acetic acid, chlorobenzene, dimethyl formamide, acrylic nitrile, dichloroethane, cyclohexane, pyridine, dimethyl sulfoxide, dichloromethane
USER BENEFITS
DEEP VACUUM LEVEL
from 7 mbar (0.2 inHg) down to 0.03 mbar (0.89×10-3 inHg)
Hazardous Area Application
ATEX RATING even for zone 0
(XP Class I, Div. 1)
RESISTANCE TO AGGRESSIVE SOLVENTS AND SOLID PARTICLES
MINIMAL OPERATING COSTS
UNCONTAMINATED VACUUM
CONTINUOUS SOLVENT RECOVERY
ROBUSTNESS AND RELIABILITY
SIMPLE ROUTINE MAINTENANCE
LOW NOISE LEVEL <70 decibels
…THAT’S NOT ALL!
HIGH RESISTANCE AND BEST DURABILITY
- Designed for the around the clock use – 24h and 7/7, at values below 80 mbar
- Cylinder, piston, piston rings and head are made of special anti-acid cast iron
- The pump is completely sealed – extremely reliable and efficient for a long time, even in damp and dusty environments
- The discharge valves are available in different materials, including Hastelloy
- Complete robustness in any work environment
- High resistance against corrosion, powder, condensates and distillation side-products
- Pump rotation speed 250 rpm means less wear and tear
- Noise level < 70 dB(A)
REDUCED UTILITIES CONSUMPTION
Thanks to:
- negligible oil consumption: from 10 to 50 grams per hour depending on the solvent
- cooled by air
- no water consumption unlike liquid ring vacuum pumps
- no steam consumption unlike Steam ejector
- no dirty liquid/sewage to be disposed
- less utilities means energy and utilities savings
EASY AND FAST MAINTENANCE
- low maintenance costs manageable on-site by the customer;
- short and frequent cleaning cycles, without stopping the process;
- the cleaning cycle re-establishes the proper pump running conditions, its good performances, reliability and robustness over the years;
- easy and fast access for ordinary maintenance operations;
- skilled technicians for on-site or remote assistance;
- spare parts available from stock, minimizing downtime.
ITALIAN QUALITYHOW SAURUS939 VACUUM PUMP SOLVE MOST COMMON EXTRACTION’S TROUBLE
Dirty vacuum
Dirty vacuum has always been a problem in production processes with the use of dry pumps and dry screw pumps: the presence of solid particles can lead to pump damages and the consequent shut down of the normal process operation.
A thin layer of oil the vacuum pump Saurus939 protects and pushes the solid particles away.
In addition, the more robust inner surface in cast iron and smaller tolerances, guarantee the durability even in harsh and heavy condition.
Black sludge formation
in the fatty acid Extraction
It is considered one of the most common phenomena with such distillation. It can be described as creation of black sludge, a carbon by-product, with a high tendency to solidify, especially in cold spots, with the consequent shut down of the normal process operation
The low rotation speed (250rpm) 1/12 of the average speed attainable by a dry pump (3000 rpm), combined with a continuous fresh oil flow allow to remove impurities, sludges and all the secondary reaction products from the vacuum zone, keeping clean and free all the moving parts.
